our products

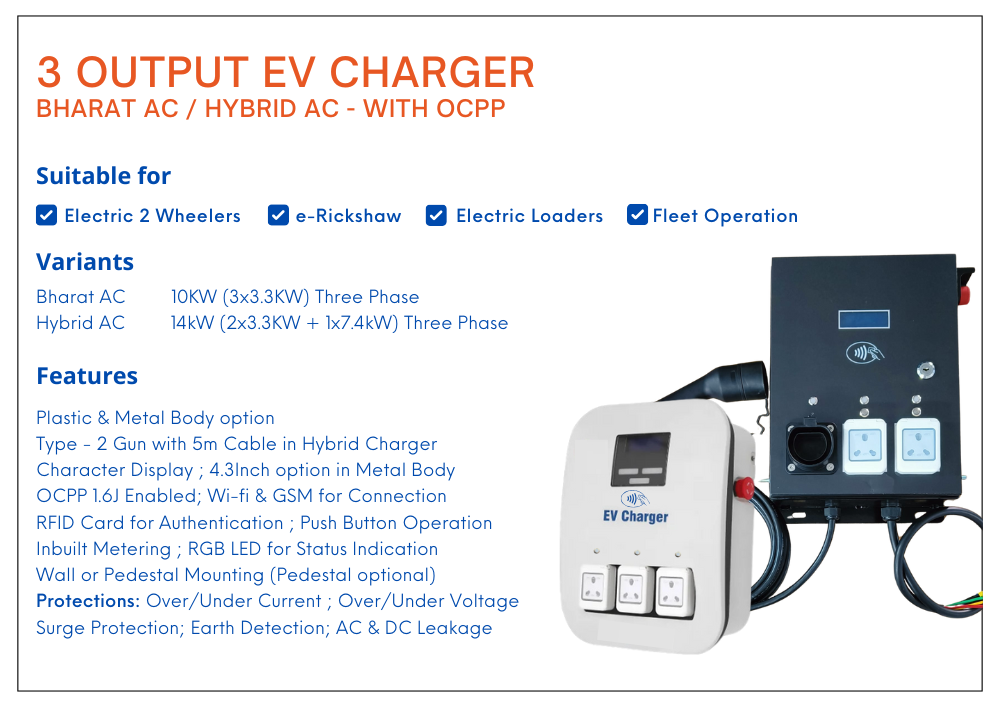

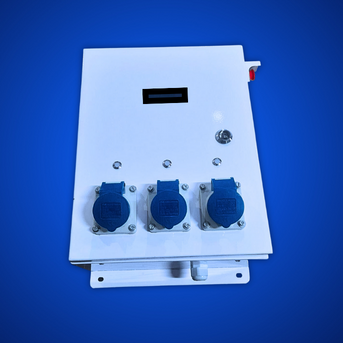

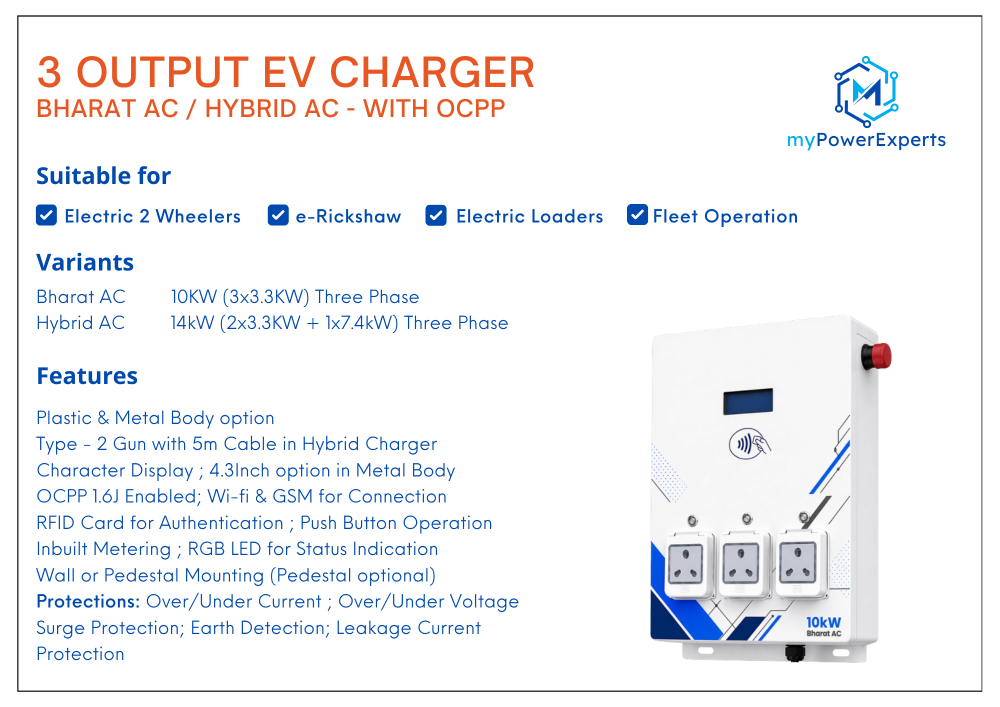

OCPP Based 3x3PIN Socket Charger

3 Output of 3.3KW each

4 Line Character Display

Wi-fi for Network Connection

GSM option also available

Inbuilt Metering

LED Indication

Over / Under Current  Over / Under Voltage Protection

Earth-Fault Detection

Push-Button Operation

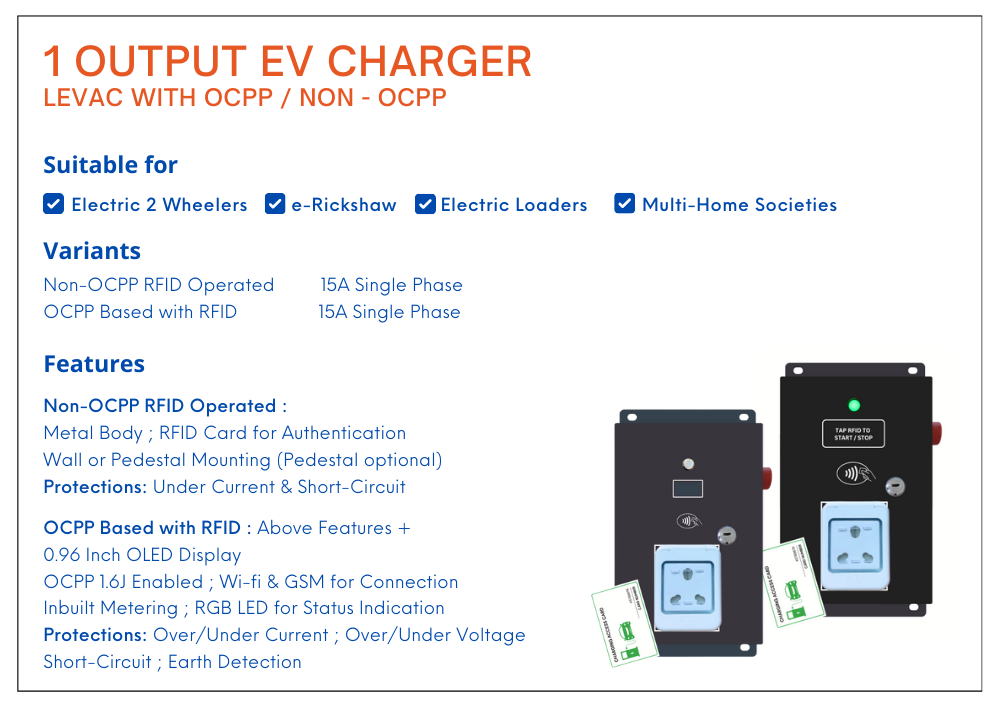

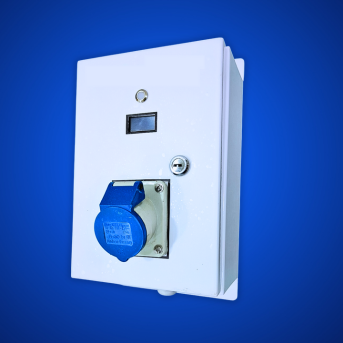

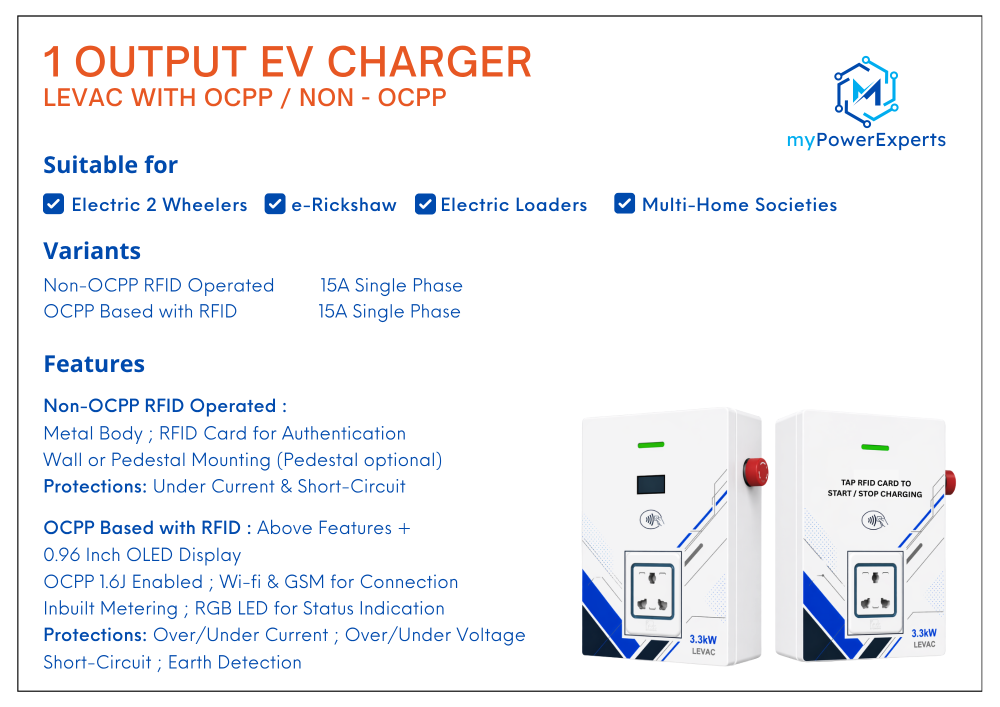

OCPP Based 1x3PIN Socket Charger

3.3kW / 16A rating

Wi-fi for Network Connection

GSM option also available

Inbuilt Metering

LED Indication

Over / Under Current & Over / Under Voltage Protection

Earth-Fault Detection

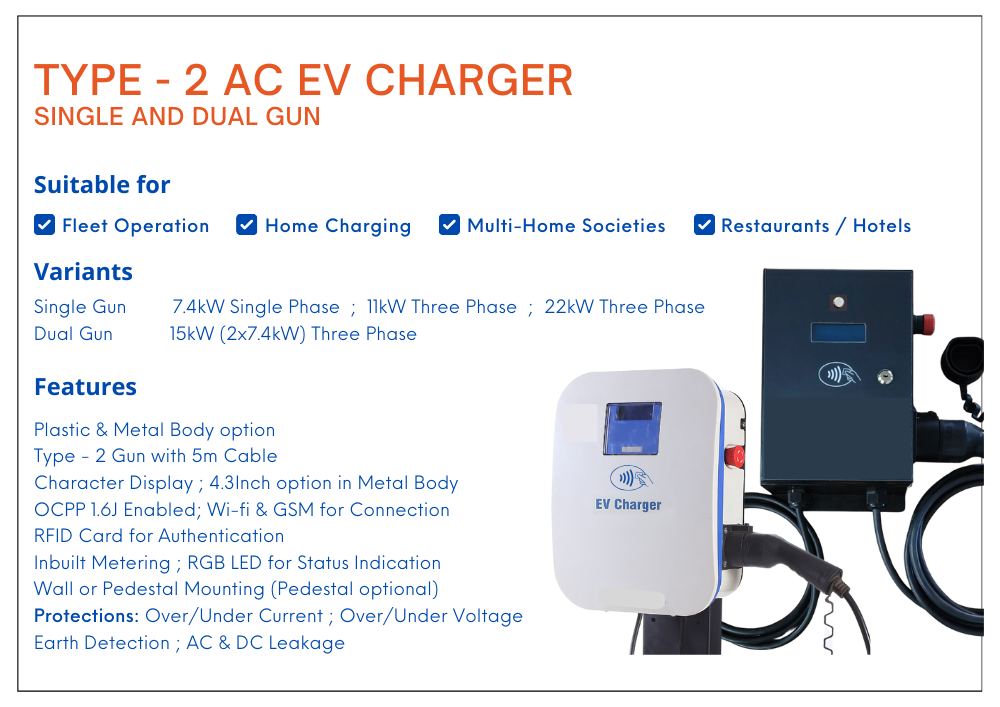

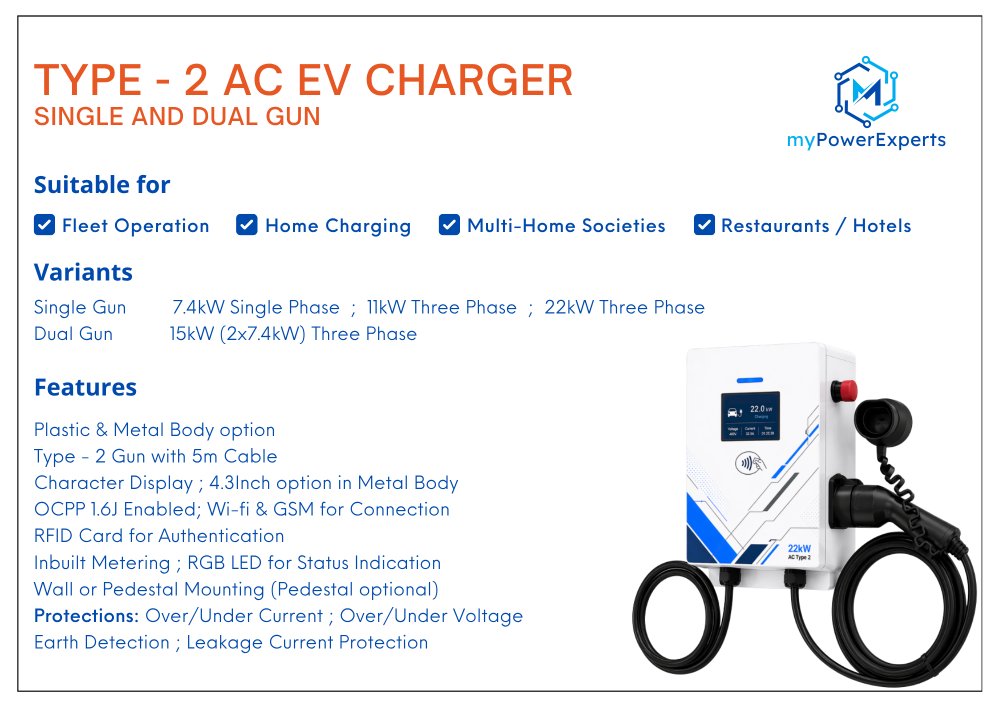

OCPP based Type 2 Single Gun

Single Phase 7.4KW, Three Phase 11KW & 22KW

Type 2 Gun with 5m Cable

4 Line Character Display / 4.3Inch Display option

Wi-fi for Network Connection

GSM option also available

Inbuilt Metering

Over / Under Current  Over / Under Voltage Protection

Earth-Fault Detection

DC Leakage Protection

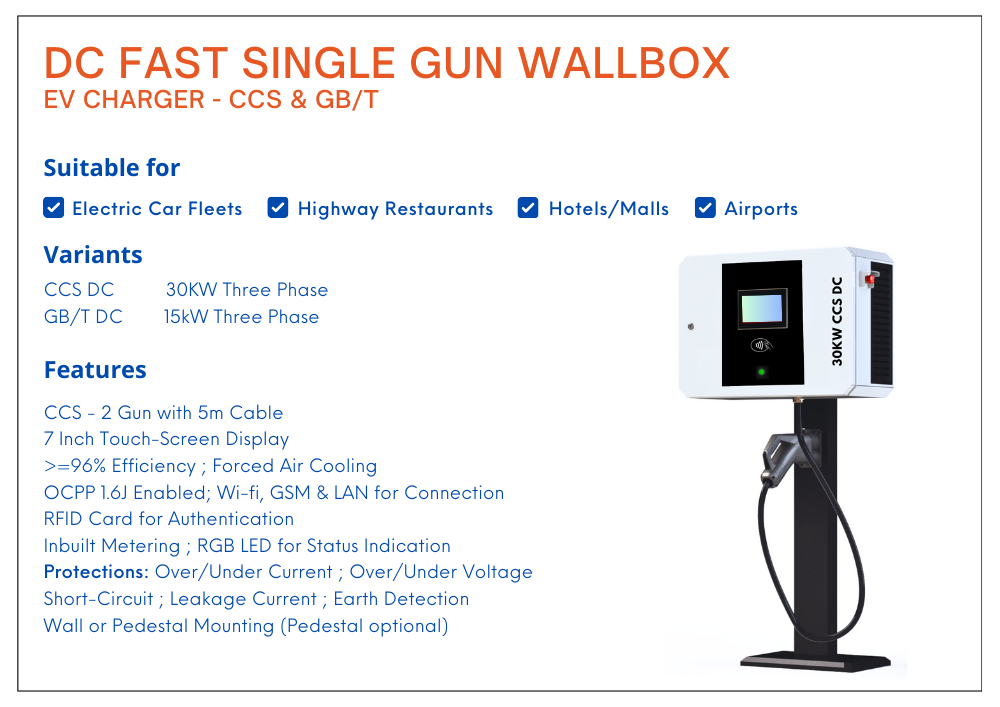

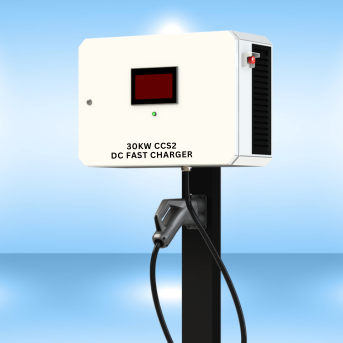

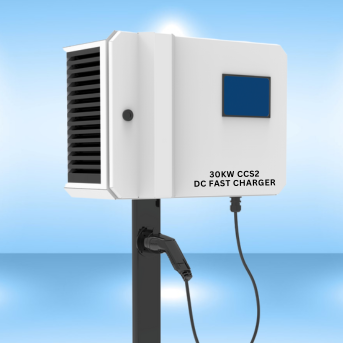

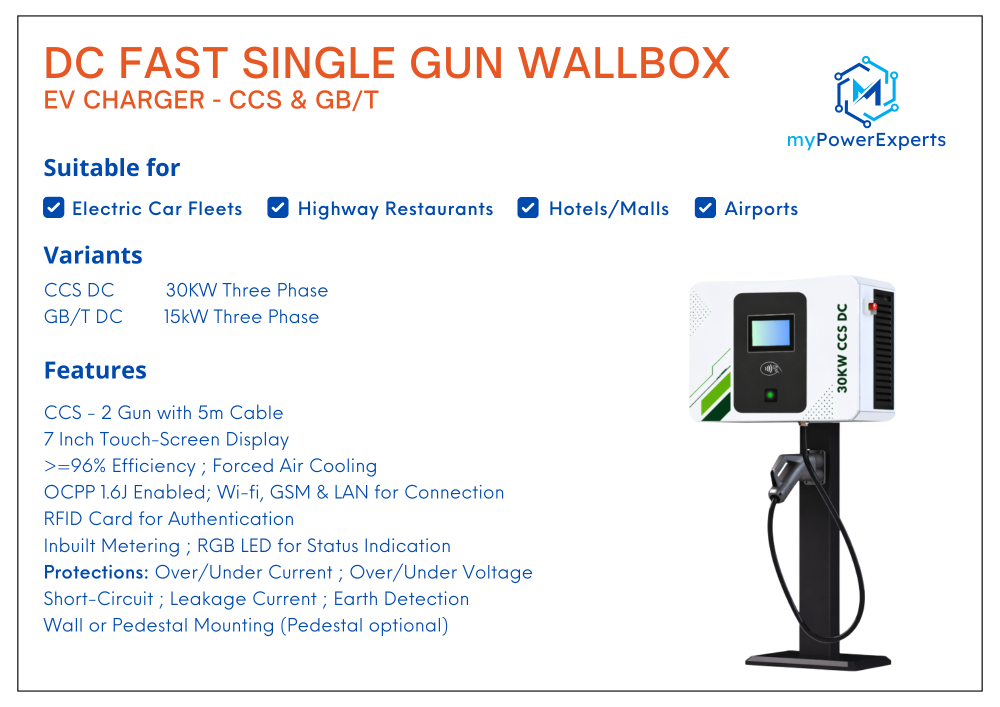

CCS and GB/T Single Gun

30kW CCS ; 15kW GB/T

CCS Single Gun with 5m Cable

7 inch LCD Display

Max. 95% Power Efficiency

OCPP 1.6J Enabled

Wi-fi for Network Connection

Compact Wallbox design

Inbuilt Protection & Metering

Wall or Pedestal Mounting

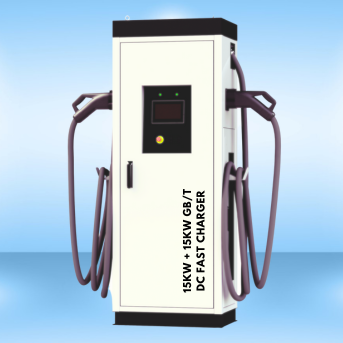

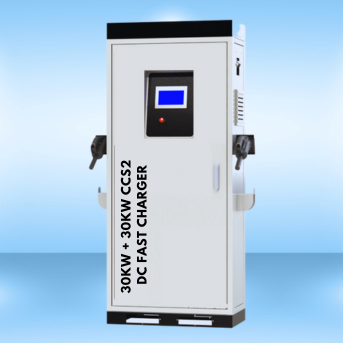

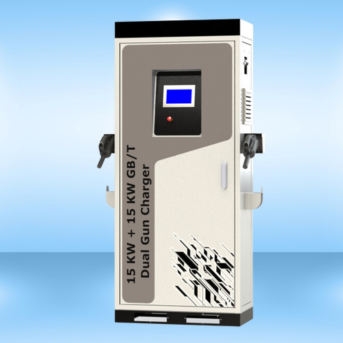

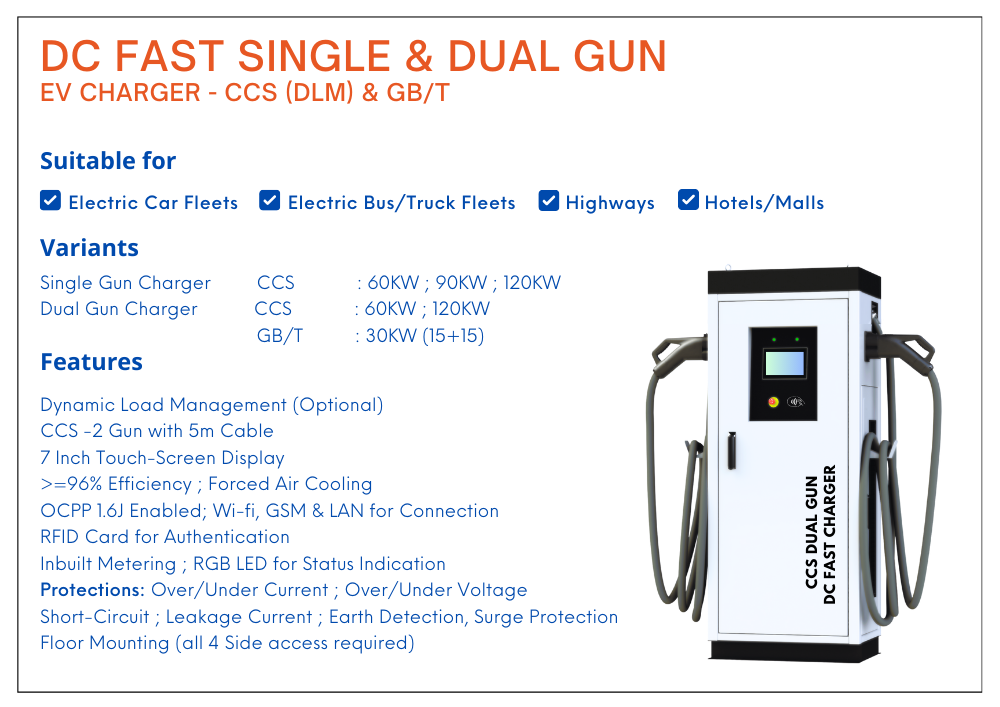

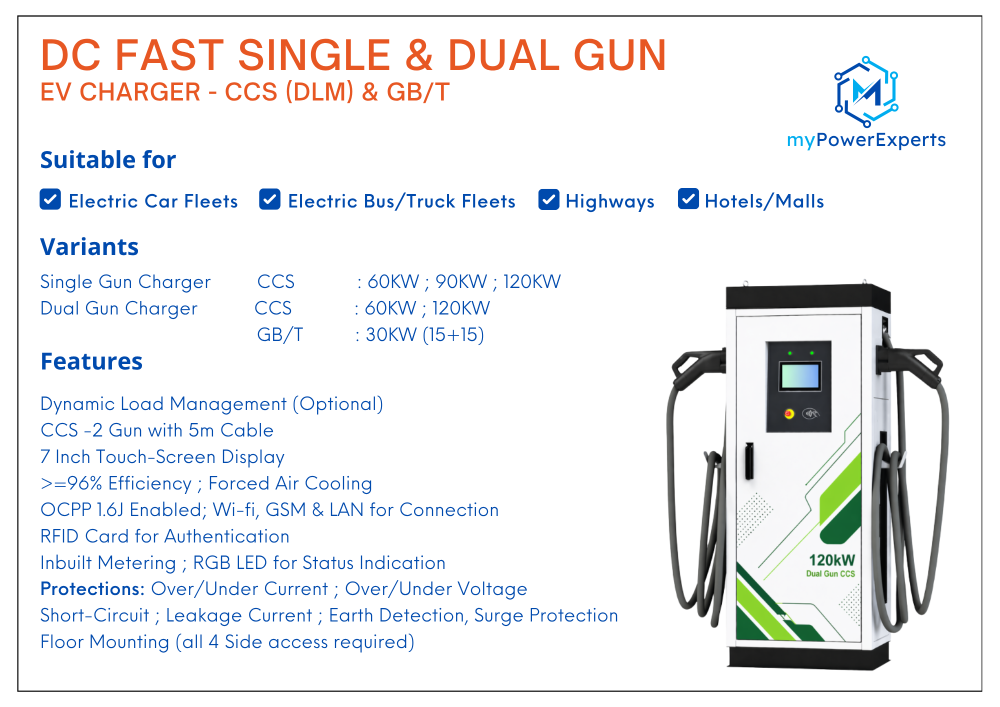

CCS and GB/T Dual Gun

30+30kW CCS ; 60+60kW CCS ; 15+15kW GB/T

CCS Dual Gun with 5m Cable

7 inch LCD Display

Max. 95% Power Efficiency

OCPP 1.6J Enabled

Wi-fi for Network Connection

Robust Enclosure with Floor Mounting Option

Inbuilt Protection & Metering

CCS Single Gun

60kW CCS ; 120kW CCS

GB/T Dual Gun with 5m Cable

7 inch LCD Display

Max. 95% Power Efficiency

OCPP 1.6J Enabled

Wi-fi for Network Connection

Robust Enclosure with Floor Mounting Option

Inbuilt Protection & Metering

FAQs

We can categories charging in two types on the basis of time:
• Slow Charging through AC Chargers,
• Fast Charging through DC Chargers.

Mainly 4 ratings are available in market as follows:
• 3.3KW Single Phase
• 7.4KW Single Phase
• 11KW Three Phase
• 22KW Three Phase

Duration of charging totally depends to OBC, car battery size and type of charger.
Example:1 Battery- 30KWH/ OBC – 3.3KW /Type-2 Charger – 3.3KW
Approx. time to charge = 9Hrs. (30KWH/3.3KW)

Example:2 Battery- 30KWH/ CCS DC – 30KW (OBC bypassed in case of DC charging)
Approx. time to charge (SOC 10% – 80%) = 50Mins.

Current/Voltage ratings of AC EV chargers are as follows:
• 3.3KW Single Phase – 16A 230V
• 7.4KW Single Phase – 32A 230V
• 11KW Three Phase – 16A 415V
• 22KW Three Phase – 32A 415V

Standard length of 5 meter is suitable in most cases. More than 5meter length is also available on demand.

AC Charging (Slow Charging): It is the most common charging method for electric vehicles with a plug or Type-2 connector. Vehicle’s OBC converts this AC supply and give it battery.

DC Charging (Fast Charging): The DC Charger converts the power before it enters the vehicle. After conversion, the power goes directly into the car battery, bypassing the car’s OBC.

Yes, but the car’s OBC will not allow the more power than 3.3KW.

Yes, but the car will charge with 3.3KW power only.
